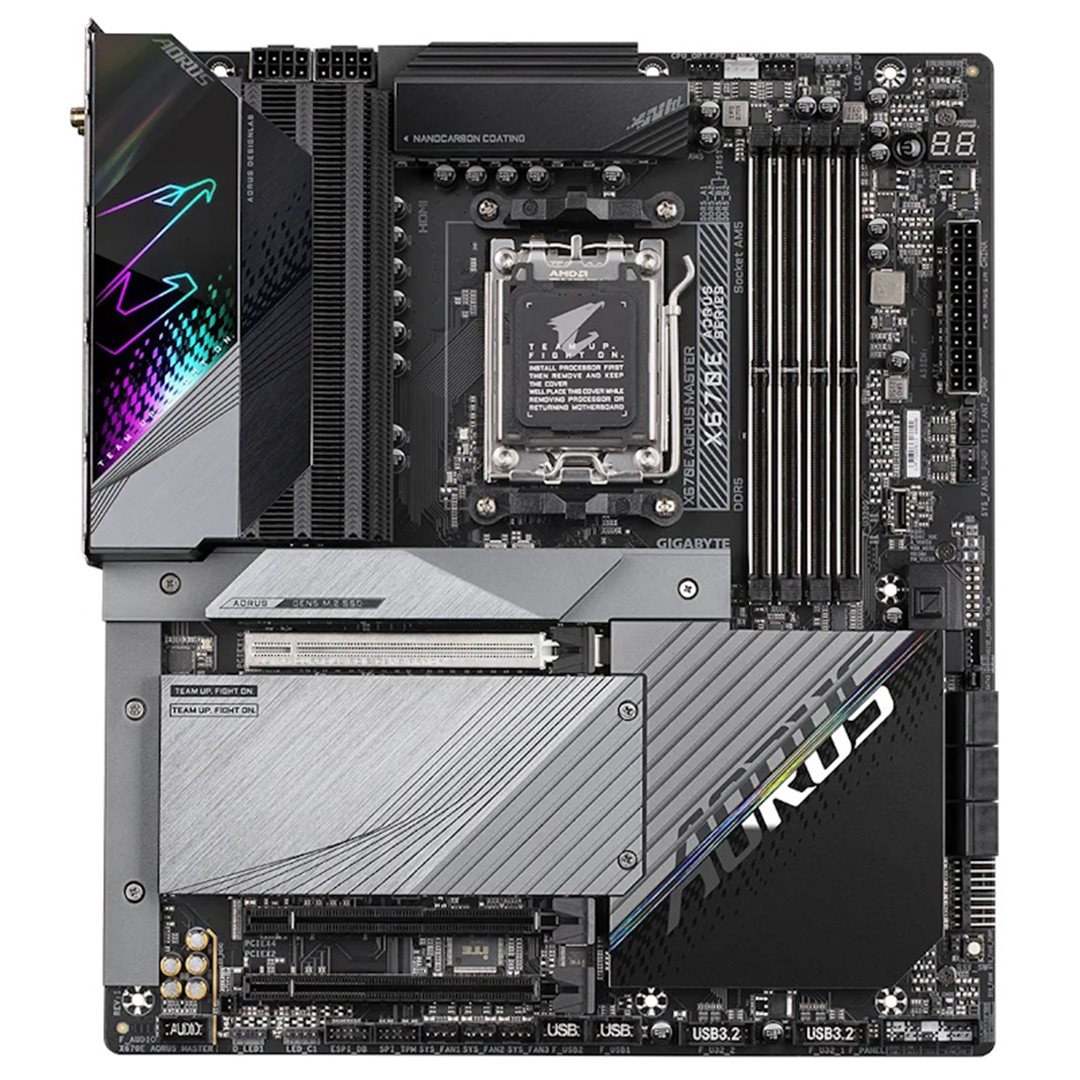

GIGABYTE X670E AORUS MASTER/ AM5/ E-ATX

Chipset: AMD X670

Rozměrový formát: E-ATX Form Factor; (30.5cm x 26.9cm)
Podpora pro procesory: AMD Ryzen 7000 Series Processors
Patice procesoru: AM5

Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture
Podpora pro paměti: DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s
Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity)
Podpora pro paměti typu: non-ECC, XMP

Grafické výstupy: (na základě procesoru)

• 1 x DisplayPort 1.4, maximální rozlišení 3840x2160@144 Hz
• 1 x USB Type-C port maximální rozlišení 3840x2160@144 Hz
• 1 x HDMI port, maximální rozlišení 4096x2160@60 Hz

Zvuková karta: Realtek ALC1220-VB CODEC

• 2/4/5.1/7.1-channel output
• Podpora S/PDIF Out

Síťová karta:

• Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wi-Fi 6E AX210 a, b, g, n, ac, ax
• Bluetooth 5.3

Rozšiřující sloty:

• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4
• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2

RAID řadič: RAID 0, RAID 1, RAID 10

SATA: 6 x SATA 6Gb/s connectors
M.2: 4 x M.2 Socket 3 connectors

USB:

• Interní:
• 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
• 2 x USB 3.2 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• Externí:
• 1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support
• 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
• 4 x USB 3.2 Gen 2 Type-A ports (red)
• 4 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports

Interní porty:

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 4 x system fan headers
• 4 x system fan/water cooling pump headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 4 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
• 2 x USB 3.2 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 1 x THB_U4 add-in card connector
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x power button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper
• 2 x temperature sensor headers

Externí porty:

• 1 x Q-Flash Plus button
• 2 x SMA antenna connectors (2T2R)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support
• 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
• 4 x USB 3.2 Gen 2 Type-A ports (red)
• 4 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Stránka výrobce: http://www.gigabyte.com/Motherboard/X670E-AORUS-MASTER-rev-10#kf
